What is Lean Six Sigma?

There are three key elements to Lean Six Sigma.

Tools and techniques: A comprehensive set of tools and analytical techniques that are used to identify and solve problems.

Process and methodology: A series of phases that organize the use of the problem-solving tools to ensure that the true root causes are found and that a solution is fully implemented.

Mindset and culture: A way of thinking that relies on data and processes to achieve operational performance goals and continuously improve.

These three elements reinforce each other. Analytical techniques are not used effectively unless there is a process for applying them and a mindset of continuous improvement creating the need for them. An improvement process does not produce the desired results unless it includes the tools and techniques that define the activity of the process steps and there is a culture that insists on systemic data-based approach to solving problems.

Finally, a culture that seeks to continuously improve will be frustrated if there are no tools and techniques for analysis and no process or methodology that can be applied to organize and focus the improvement efforts. Fortunately, the Lean Six Sigma approach to business improvement includes all three layers.

Background

Let’s take a look at the history of Lean Six Sigma, and how the different parts of this methodology were formed to become the process improvement approach we know today.

Five principles of lean manufacturing

1. Value
   Value is determined by what the customer considers to be important within a product or service, rather than what the individuals developing or delivering the product or service consider important.
2. Value Stream
   The set of business activities and steps involved in creating and delivering products and services to the customer; it is the connection of the steps together rather than considering each step in isolation.
3. Flow
   The degree to which there is smooth uninterrupted flow of activities that add value to the customer, rather than waste and inefficiency that impedes the flow through the value stream.
4. Pull
   The degree to which the value stream is only processing products and services for which there is a customer demand, rather than creating something and hoping someone wants it.
5. Perfection
   The continuous assessment of value stream performance to identify and improve the value created and delivered to the customer, rather than resisting changes that improve the process of creating and delivering customer value.

Three types of waste

Using the terms of the Toyota Production System, the Lean methodology identifies and strives to eliminate three types of waste:

1. Muda
   Non-value added work – pure waste.
2. Mura
   Unevenness in flow – unpredictable variation requires compensation elsewhere in the system.
3. Muri
   Over-burdening resources beyond their normal rated capability – stresses and damages resources so that they are unable to do a normal workload.

As you can probably tell from both of these lists, the principles of Lean can be applied to any business process or operation, not just manufacturing. It is now used in literally all functions and all industries.

Similarities and differences

Lean and Six Sigma have been combined because, although they are different, they are complementary. The similarities allow them to mesh together well. The differences ensure that there are analytical tools and solution options available that will improve the process, product or service. It is due to the similarities that both types of analysis can be done simultaneously on the same process, product, or service.

Similarities of Lean and Six Sigma

• Both rely on a definition of value that is based upon the customer experience. The customer is king (or queen).
• Both use a process flow mapping approach to understand the process. Even when the analysis is based upon a product or service, there is a process that is associated with creating and delivering that product or service.
• Both rely on data for determining current performance and for determining the impact of future performance. The data collected in a Lean Six Sigma project can often be used to support both Lean analysis and Six Sigma analysis. The reliance on data helps to ensure that the true root cause is identified.
• Both are applied using improvement projects that typically will be implemented by a small cross-functional team. The duration of the project and the size of the team will depend upon the scope and scale of the process, product or service being analyzed for improvement.
• Both have migrated beyond the manufacturing operation and are now used for all functions and for all internally facing and externally facing processes. They are also used in all industries including industrial, consumer, government, education, and non-profits.
• Improvements based upon using either approach will normally both reduce waste and reduce variation. Removing wasted steps and activities (muda) eliminates sources of variation, and removing variation eliminates wasted process capacity and steps associated with accommodating the variation (mura and muri).

However, there are some differences in the two approaches. These differences do not create a conflict, rather they provide multiple paths that can be used to reach a similar destination. A Lean Six Sigma project should let the nature of the defect, as defined by the customer value, and the current state of the process, product, or service dictate which sets of tools are most appropriate. The final solution is often a hybrid combination of both Lean improvements and Six Sigma improvements.

Lean Six Sigma principles

Let’s outline the principles that have helped to make Lean Six Sigma so effective. I have been directly involved in the successful implementation of Lean Six Sigma in many organizations, and I have done consulting in several organizations who had tried and failed to implement an effective Lean Six Sigma program. In the successful programs, the following principles were adopted. In the failed implementations, at least one or more principle was not followed.

Addressing a real-world problem

Lean Six Sigma is both a top-down and bottom-up methodology. The top-down element is associated with problem selection. The Lean Six Sigma project teams are focused on real-world problems that are impacting customers and processes right now. Often the team members are feeling the effect of the problem with rework and repair activities or addressing customer complaints. This lends a sense of urgency and importance to the project. It is not just "busy work," it is real work.

One of the reasons for the failure of the Quality Circle programs of the 1980s was that every team could choose its own project. While this sounds great for empowerment, often the projects selected were not real-world problems. In one organization I worked with, one of the first projects selected by a team was to repaint the lunch room and put up new curtains. Soon the whole initiative was viewed in the organization as a "fun" party time activity, but not related to real business improvement.

It is often hard to get the organization to recognize the importance of this methodology for business success. Buy-in is much easier to achieve when both management and the team understand the importance of identifying and fixing the problem. But management does not dictate a problem and solution. Rather the analysis by the team determines the true root cause.

Analysis is accomplished by a team

A Lean Six Sigma project is normally staffed by a cross-functional team that is involved with different aspects of the process being analyzed. Many business processes are cross-functional and a cross-functional analysis is needed to prevent sub-optimization of the process. Improving one step at the expense of another step does not eliminate waste or variation, it just moves it to a different step in the process.

A problem I have seen in several Lean Six Sigma implementations was that the Green Belt and Black Belt project leaders worked on their own to find and fix the problem without the help of a cross-functional team. If the process and problem were small and the project leader understood the process, this would prove effective. However, with large cross-functional processes and projects, or in some cases when the project leader had no background in the type of process or problem being analyzed, the projects would become stalled and delayed.

By including a cross-functional team, all the perspectives of the organizations that are involved and impacted by the project are included in the problem analysis, and even more importantly in the development of the solution. The in-depth knowledge of the different team members is helpful for understanding the problem and the implications of the data. These different perspectives are crucial to help the team create a solution that addresses the immediate problem and often will help to eliminate waste and variation in other aspects of the process.

Analysis is focused on a process

Lean Six Sigma is best used for analyzing processes. Even when the problem under investigation is an obvious product problem, Lean Six Sigma will be much more effective when it is applied to the process that designs or builds the product, rather than looking at just the product itself. That is because the analysis is meant to investigate and improve actions, and actions are the steps of processes. Actions seldom happen in a vacuum with no impact from preceding or succeeding actions. Instead they must be considered in the context of the process in which they are occurring. The Lean value stream map or Six Sigma process map provide a picture of that process.

On numerous occasions, I have found that the creation of a map of the process immediately led to an understanding of what was happening, and recognition of some of the underlying problems that are hidden when an individual is only aware of their step in the process. On a few occasions I have encountered a project team that focused solely on a product defect without considering the process that created or used the product. While they could identify the defect, they could not determine the actual cause and create a solution until a process map was created.

Analysis is based upon data

Lean Six Sigma relies on data, not guesses. The Lean value stream map is verified with a walk-through of the process, and then data is collected at each step. The current condition of the process, product or service is measured in the Measure phase. This includes measuring the problem or defect and measuring anything that is done correctly. The data that is captured is used for analysis to determine the actual state of what is happening, not an assumed state. This analysis verifies the underlying causes so that the correct problem is fixed. But the reliance on data does not stop there. When a solution has been created, data is collected to determine if the solution has truly fixed the problem. And then data is used to ensure the solution stays in place and the problem does not return.

One of the challenges that continuous improvement and problem-solving initiatives have had over the years is a difficulty accepting the reality of the current conditions. Businesses are often in denial about problems and issues. I recently worked with a company that was implementing Lean Six Sigma. One of the initial project teams was tasked with resolving a product issue that created large levels of rework in their operation and was the source of numerous customer complaints. The problem had been "solved" on numerous occasions by putting tighter controls on the process step that "caused" the problem. Except when we actually measured what was happening in each step, we found the problem was really due to several other factors. Because of "politics" and paradigms, the management at first rejected the analysis. But when presented with the data, they eventually recognized where the problems were originating and an effective solution was implemented. It was the data that finally broke through the paradigms about the problem.

Understand the impact of the process sigma

This next principle is focused on the Six Sigma analysis. The practical impact of sigma is that it represents the amount of normal variation that occurs. It is always tied to a specific parameter or characteristic that is being measured. Same attributes of a product or process will have virtually no variation. That attribute never changes, no matter how often the product or process occurs. Other attributes do have variation. There is an average value, but there is uncertainty about any specific instance. Sigma is the statistical measurement of that uncertainty.

• One sigma represents the boundaries for a little over two thirds of the occurrences.
• Two sigma represents 95% of the occurrences.
• Three sigma represents over 99% of the occurrences.
• By the time you get out to six sigma, there are only about 3 chances in a million that normal variation could cause the attribute being measured to be that different from the average value.

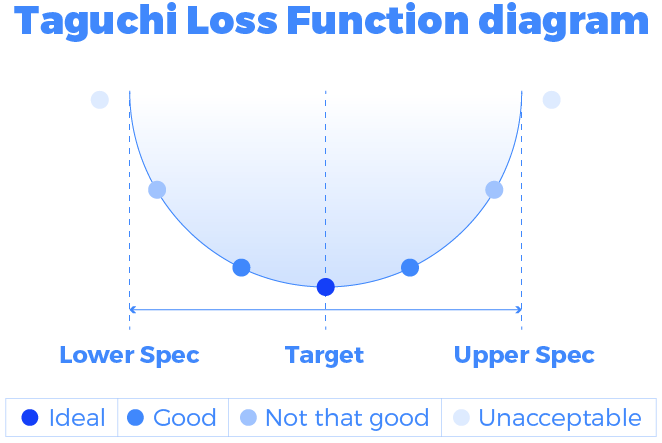

Sigma represents variation, it says nothing about acceptability. Notice that I haven’t yet mentioned whether the attribute being measured is acceptable from a customer or standards viewpoint. An attribute could have a very small sigma, essentially no variation. But if the average value of that attribute is outside the bounds of what the customer finds acceptable, it just means that it is always defective. By the same token, an attribute could have a very large sigma, there is a high level of uncertainty. But if the customer has no expectations concerning that attribute, it will always be acceptable regardless of the variation.

The reason the Lean Six Sigma methodology is concerned about sigma is not for the purpose of customer acceptance. Rather when high variation and uncertainty exists within key attributes or parameters, it causes the expense of extra time and money, and it will often lead to the creation of defects. Remember, we are in a process and the outputs of one step become the inputs of another step. When the inputs have a great deal of uncertainty, which is indicated by a high sigma, the succeeding steps should be able to accommodate the full range of possibilities for the value of that attribute. That will often add cost and complexity. Lowering sigma can simplify and streamline the entire process.

Solution addresses the real root cause(s)

Lean Six Sigma is one of the most powerful problem-solving and continuous improvement methodologies because it identifies the characteristics of the real problem. Some methodologies start with the assumption that every problem has a unique or special cause, and if that cause can be identified and eliminated or controlled, the problem goes away. Other methodologies start with the assumption that the problem is a common occurrence within the process. The process is fundamentally flawed or inadequate and if the process were changed to avoid this flaw or correct this inadequacy, the problem goes away.

Both goals are admirable and in fact are actually quite similar. But the way to fix the first problem is to put in a place a "spot correction" to control the unique cause, and the fix for the second approach is to re-engineer the process. Unfortunately, selecting the wrong solution strategy does not improve the situation and can often make things worse. Lean Six Sigma employs the tools to differentiate between whether the problem is a special cause or a common cause. By making this differentiation, the project team can go on to find the true root cause or causes. Also, the team can create a solution strategy that will appropriately address the problem. If it is a special cause, they can implement a special solution. If it is a common cause, they can redesign the process.

Solution includes a control system to help it "stick"

Lean Six Sigma does not end with identifying the problem or even with implementing a solution. The final phase of Lean Six Sigma is the Control phase. There is a natural resistance to change in most organizations. For many people and systems, change is hard. Habits must be broken, new methods learned, new information is required. In the Lean Six Sigma Control phase, the solution is implemented and the organization begins to use it. While this is happening, the project team is ensuring all of the supporting systems are also updated to reflect any changes and they provide training and coaching for process operators and managers on the use of the solution. This even includes ensuring the control systems that monitor the process are in place to identify if the process begins to revert back to the previous behavior. The project team does not declare victory and disband just because they have successfully demonstrated their solution once. Rather they stick with it through a statistically significant number of occurrences. This both demonstrates the solution really solved the problem and that the operators and managers are equipped and able to manage the improved process.

I worked with a company in Chicago at one point to address a recurring problem in their purchasing department. The solution was a straightforward process change to eliminate a common cause problem. As I looked over the historical documents associated with this problem, I found that the previous solutions were similar to the one we had developed. They had been put it place and used for a year or two, and then slowly modified until the problem returned. The reason for the modifications was based upon how the senior management measured the effectiveness of the purchasing department. Rather than measuring the entire purchasing process, the measurements were tied to one step in the process. Optimizing that step led to sub-optimization in several other steps which created the problem. This time when a solution was implemented, I made sure the corporate measurement system was modified to measure the entire purchasing operation and not just one step. These are the types of issues often addressed in the Lean Six Sigma Control phase.

Benefits of Lean Six Sigma

Lean Six Sigma is a continuous improvement methodology. However, a legitimate question is, what does it improve? Does it increase sales or profits? Does it improve customer satisfaction and lower complaints? Does it lower costs, improve incoming quality, outgoing quality or the cost of quality? Does it improve employee morale? Does it increase your pay and benefits, or improve your promotability? Does it create world peace and solve world hunger? "Yes" to all of these – except the last two. Let’s look at benefits for the business and then benefits for the individuals who attain a level of certification in Lean Six Sigma.

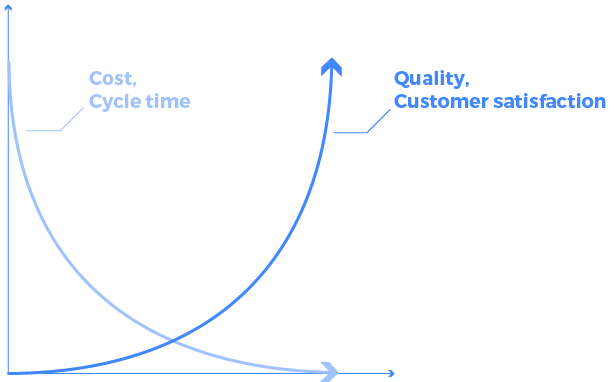

Organizational benefits

Lean Six Sigma is a continuous improvement methodology for an organization. So, we would expect organizational benefits. In fact, the General Electric company has claimed to have realized over $2 billion of cost savings from Lean Six Sigma. Let’s consider the nature of the benefits and their implication.

Simple processes

Lean Six Sigma will simplify the business processes. The cross-functional value stream maps will identify areas of waste and inefficiency. Many of the processes have embedded rework and work-arounds for persistent problems. When the wasted effort is removed and the rework and workarounds are no longer needed, the remaining processes are simple and often much easier to manage and control. This results in a faster process, which leads to better customer service and higher customer satisfaction. Both of those will normally lead to greater sales. In addition, the simpler, faster process will lower overhead costs which will increase profits. Finally, simpler processes have fewer opportunities for errors. Therefore, they normally are characterized by higher quality and fewer defects.

Fewer errors and mistakes

Let’s dig deeper into that benefit of fewer errors and mistakes. Lean Six Sigma starts with a definition of acceptable quality based upon what the customers value. This external focus on quality prioritizes the continuous improvement efforts to address the problems that have the most impact on business success. In addition, the reliance on data to define problems rather than gut feel or anecdotes further prioritizes the improvement effort on the real problems in the organization. The result is that the improvements fix real problems and bring them to a level that is acceptable to the real customers. So, it is not just that Lean Six Sigma addresses errors and mistakes in the business, but rather that Lean Six Sigma addresses the errors and mistakes that matter the most.

Predictable performance

Simple processes are easier to control and manage than complex processes, especially those processes with fewer errors and mistakes. But added to these benefits, Lean Six Sigma has a focus on reducing variation within a process. With less variation, processes become more predictable. That means predictable cycle time, predictable quality output, and predictable costs. And these can lead to better customer service, fewer complaints, and higher profits. This predictability becomes a tremendous advantage for an organization when operating in an environment of fast moving changes. Changing technology and customer expectations are already creating an unstable business environment. Without predictable processes it is almost impossible to create and implement an appropriate reaction to this instability.

Active control

Which brings me to the final organizational benefit I want to discuss and that is an improved ability to actively control processes. The Lean Six Sigma methodology shortens cycle times and puts in place real-time data based control plans and systems. With short cycle times and data-based control systems, the operators and process managers can make decisions that immediately impact process performance. This improves performance, improves employee morale, and improves agility. The operators understand how their work impacts the process performance and they get rapid feedback. The operators are less likely to feel that they are victims of the process since they are now involved in directly managing the process and improving it. With short cycles and active control, the organization can quickly respond to opportunities in the changing marketplace. And short efficient processes that are documented with value stream maps and control charts are easier to update than complex undocumented processes.

Personal benefits

Lean Six Sigma provides benefits for individuals within the organization who become Lean Six Sigma leaders. We will discuss the various leadership roles in more detail in a later section. First let’s identify some of the personal benefits you can expect when participating in Lean Six Sigma.

Personal effectiveness

Lean Six Sigma provides a structured problem-solving methodology that can be used to address any type of problem. Being able to find and fix problems will improve your ability to perform in any position and industry. The Lean Six Sigma methodology steers you through an organized process of inquiry, analysis, problem identification and solution creation. Many of the tools and techniques can be applied to everyday problems and issues. But even if you don’t use all the tools, the organized problem-solving approach will put you in control of finding and fixing your problems. I have used this approach when fixing problems at my house, with local charities I support, and of course in many different business settings.

Leadership opportunity

Lean Six Sigma is implemented through projects and projects have leaders. Leading a Lean Six Sigma project will often provide an opportunity for exposure to other functions and senior management. This exposure is in the context of someone who can find and fix a problem. Interacting with team members and managers will likely improve your communication and decision-making skills. The structure of Lean Six Sigma can help you to develop your project management skills. And of course being able to put on your resume that you led a project team that achieved cost savings, quality improvement, and cycle time reduction will only help you as you seek that next promotion or new opportunity.

Pay and promotability

Which brings us to the pay and promotability of Lean Six Sigma practitioners. Attaining belt certification is a valuable credential on your resume. Many job postings require that an applicant have a Lean Six Sigma credential. So, this will open the door for some promotions. In addition, within an organization, promotions are often based upon how you have demonstrated your leadership skills. Effectively leading a Lean Six Sigma project shows senior management and HR that you are ready for greater responsibility. The average annual salary in the USA for Lean Six Sigma Black belts is just under $100,000. The average for your industry and country will vary. However, it is safe to say that Lean Six Sigma certification will enhance your earning potential.

Industries and functions using Lean Six Sigma

Lean started in the process engineering department of an automotive manufacturer and Six Sigma started in the quality department of a high-tech system manufacturer. However, the methodologies have moved well beyond their roots in quality and process engineering. I have either participated on or coached Lean Six Sigma projects in virtually every business department including:

• C-Suite
• Call Center
• Customer Service
• Design Engineering
• Field Sales
• Finance
• Human Resources
• IT
• Legal
• Logistics
• Maintenance
• Manufacturing Engineering
• Manufacturing Operations
• Marketing
• Process Engineering
• Purchasing/Sourcing
• Quality
• R&D
• Sales
• Test

Lean has also moved well beyond the realm of manufacturing. Many industries have embraced Lean Six Sigma, and the list of companies using the methodology is much too long to be included here. In some cases the emphasis will be primarily on Lean, in some on Six Sigma, and in many it is the combination of Lean and Six Sigma.

• Agri-business
• Aviation
• Banking
• Electronics
• Financial Services
• Government
• Higher Education
• Hospitals
• Manufacturing
• Medical Devices
• Mining
• Oil and Gas
• Pharmaceuticals
• Retail
• Telecom
• Transportation

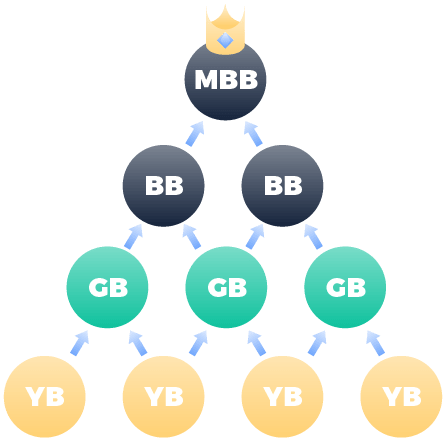

Lean Six Sigma belts

So far we have discussed the background of Lean Six Sigma, the principles embedded in Lean Six Sigma and some of the benefits. You are probably asking, when are we going to explain how it works? Well, now is the time. Let’s go through the key roles and responsibilities, the five-phase structure with gate reviews, and then do a quick overview of some of the more commonly used tools and techniques.

Lean Six Sigma has adopted the roles from the Motorola Six Sigma methodology, which borrow the naming convention of the progression of mastery used within martial arts. Some organizations have their own levels and definitions of mastery. However, I will be describing the most commonly found levels in use today. You may have heard of Lean Six Sigma belts - these are the Yellow Belt, Green Belt, Black Belt, and Master Black Belt. Each of these roles are expected to have training, and in many cases certification appropriate to their role.

In the early years of Lean and Six Sigma, every organization established its own standards with regards to methodology and tools and techniques. However, most organizations now rely on an independent certifying body for training and certification. The two most widely recognized organizations that provide certification are American Society for Quality (ASQ) and the International Association of Six Sigma Certification (IASSC). The GoSkills Lean Six Sigma courses are aligned with the IASSC Body of Knowledge. Let’s look at each of these roles in more detail.

Five phases of Lean Six Sigma – DMAIC

Lean Six Sigma projects follow a structured methodology, based upon five phases. The five phases are represented by the acronym DMAIC – which stands for Define, Measure, Analyze, Improve, Control.

Define phase

The Define phase is the first phase of the project. The key question that must be answered is, "Have we defined the problem from a business perspective?" Normally a Green Belt or Black Belt project leader is selected and provided with a high-level description of the problem. Some Yellow Belt project team members may also be identified at that time. The project team needs to get input from stakeholders and customers to understand the problem from their perspective. During this time, they are quantifying what the customers consider to be critical quality expectations.

With an understanding of the problem from the business and customer perspective, the boundaries for the process - and any product or service that is delivered - can be determined. While a preliminary project team may be in place in this phase, the determination of the boundaries on the process will often dictate which functions need to support the project with subject matter experts. During this phase, those subject matter experts who are new to Lean Six Sigma will often receive Yellow Belt training. This phase often ends with the development of a project charter that identifies the problem from the customer perspective, the processes to be analyzed, and a goal for performance improvement.

Measure phase

The Measure phase is the second phase of a Lean Six Sigma project. In this phase the baseline condition is established by measuring the current performance of the process, product, or service with respect to the critical quality attributes identified in the Define phase. The question that is asked in this phase is, "Do we understand the work and flow of each of the steps in the current process and have we measured the process performance at each step?" If the process is not well documented or controlled, this will likely be the longest phase and requires the most work.

The process must be defined to determine the flow of each step. Each step is then measured for time, quality, and any other attribute that was important to the customer. Often the appropriate measurement systems do not exist to collect this data, so a measurement system will need to be developed and verified so that it provides accurate and complete data. The subject matter experts on the team from the various departments and functions are closely engaged in this phase to identify the process steps and to develop and deploy an approach for measuring performance. By the end of this phase, the problem experienced by the customer should be quantified with process data, and an accurate assessment of the current or "As-is" state for the entire process has been determined.

Analyze phase

The Analyze phase is the third phase of a Lean Six Sigma project. In this phase, the process and product data are analyzed to determine the true root cause or causes of the problem the customer has experienced. The key question to be answered is just that, "Have we clearly identified the problem and determined the true root cause(s)?" It is at this stage that the project leader applies the Lean analytical tools and the Six Sigma statistical hypothesis testing techniques to determine the root cause. The project leader is expected to be able to mathematically show that the root cause has been identified. While the analytical and statistical techniques are rigorous, the math involved is usually very straight-forward, especially if a statistical analysis application is used such as Excel’s Analysis Tool Pak or Minitab.

Often the data collected during the Measure phase is sufficient for the analysis. However, in some cases, the analysis will point to an area requiring further study and additional data may need to be collected. Which analytical tool or technique is used will depend upon the nature of the problem or defect from the customer perspective and the types of data that are available for analysis. Often during this phase, a detailed problem statement will be completed based upon the results of the analysis. The team must guard against preparing a detailed problem statement before this step. Otherwise there is a good chance they will assume the wrong problem, which will lead to confusion and misdirection on the team when they begin to create a solution in the next phase. By the end of this phase all team members should be in agreement that the sources of the problem are now known and understood.

Improve phase

The Improve phase is the fourth phase of a Lean Six Sigma project. Teams often want to jump to this phase immediately without thoroughly completing the first three phases. When that occurs, the team usually creates an improvement that addresses a symptom without getting to the root cause. The goal for this phase is to create a solution to the problem that eliminates or contains it. The question being answered is, "Have we created a viable solution for the problem that is ready to be implemented?" Depending upon the nature of the identified problem, different team members will play a larger or smaller role in the creation of the solution.

During this phase, the solution is developed and tested. Depending upon the nature of the solution, this is often the most expensive phase. The "To-Be" process is developed and documented. In many cases, the new process requires changes in equipment, software, or procedures. Once again data is relied upon to be certain the solution has effectively addressed the problem, which normally means that a statistically significant number of operations are performed to collect that data. A trap the team can easily fall into is to prematurely celebrate a "random success." The solution must be thoroughly tested and the accompanying training and implementation materials developed and ready to be deployed. By the end of this phase, the solution is ready.

Control phase

The Control phase is the final phase of a Lean Six Sigma project. In this phase the solution is fully deployed. The phase does not end until the solution is stable and all aspects of the business that are affected by the change are operational. The question being answered is, "Have we established a "new normal" that has eliminated or controlled the problem the customer experienced?" All members of the project team are involved with the implementation to be certain that any changes in their department are fully implemented. The phase continues until the process has demonstrated stability in performance. This may occur within a few days or may take several months.

A control plan is normally set in place for monitoring the process, product or service. The control plan includes threshold measurements for acceptable performance and corrective action steps to be followed if the performance degrades. This control plan is one of the keys to ensuring the improvement is permanent and that the process does not revert back to its prior state. In most cases, the control plan will include statistical process control. A major aspect of the work in this phase is often the updates of documentation in associated processes such as training processes, business information systems, and management review. This phase is completed when the operators and managers of the process no longer require support from the project team.

Phase Gate reviews

We have focused on the role of the project leader and the project team. However, senior management and the process stakeholders also have a role in the Lean Six Sigma methodology. These individuals, along with one or more Black Belts, will conduct the Phase Gate reviews. The reviews can be done in a face-to-face presentation, a virtual presentation, or through the submittal of a report that is reviewed and approved by the stakeholders and Black Belts. Which approach is used depends primarily on corporate culture and team logistics. These reviews occur at the end of each phase. A review has three purposes:

1. Review the work of the preceding phase to ensure that it was done with the appropriate Lean Six Sigma rigor. If this is found to be inadequate, the team will need to repeat portions of the work and come back for a new Phase Gate review. The Black Belt in the review will coach the team on the performance of the areas of weakness.

2. Review the answer to the phase question and the supporting data or documentation, to ensure it addresses the customer need. If the data does not support the answer, the reviewers should direct the team to continue in this phase until they have answered the question.

3. Establish any ground-rules or boundaries associated with the next phase, based upon the results of the preceding phase. Examples would be to set a time window for collecting data in the Measure phase or a capital budget limit for a solution to be developed in the Improve phase.

Reviewers need to be familiar with the Lean Six Sigma methodology and the structured approach to problem solving. They can easily derail a project team by asking the wrong question for the given phase. For instance, asking a team to identify the root cause of the problem during the Measure Phase Gate review will force them to jump to conclusions. That question should not be asked until the Analyze Phase Gate review. The Black Belt who is part of the review team should ensure the reviewers are aware of what questions the team should be prepared to answer, and which questions are not appropriate for that Phase Gate review.

The reviewers often include senior leaders from the organizations or departments with responsibility for the process being analyzed. If the team is encountering resistance to their activities or need special access or support, to conduct the next phase of the project they should be requesting that from the reviewers. An example might be to have access to certain data records or to have operators support a measurement systems analysis of the testing methodology. The response of the reviewers to these requests is a signal to the rest of the organization of the importance of the Lean Six Sigma initiative.

Lean Six Sigma tools and techniques

Now that we have covered the structure and process of the Lean Six Sigma methodology, let’s look at the tools and techniques. Many of these tools and techniques were in use long before the Lean Six Sigma methodology was formulated, and have been incorporated into this methodology. One of the powerful aspects of Lean Six Sigma is that multiple tools are available for use in each phase. A team can then choose the tool or technique that best fits their unique situation. Organizations will often have a favorite set of techniques based upon their corporate culture or historical preferences.

These tools and techniques are organized based upon the types of analysis in which they are used. Many of these could be used in multiple phases of a Lean Six Sigma project, depending upon the problem and analysis being conducted.

Process analysis tools and techniques

Process analysis tools and techniques are often associated with the Lean portion of the analysis. They help to describe the process and understand its efficiency.

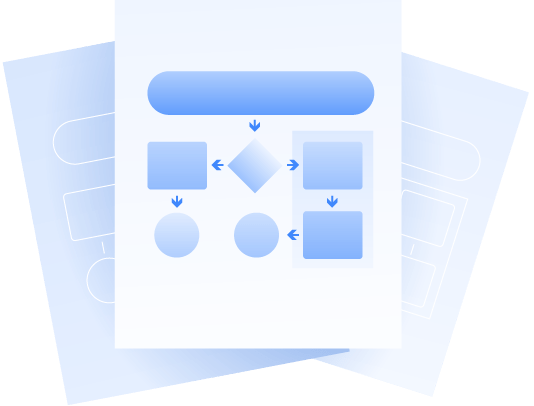

• Process Map – a graphical display that shows the interactions between all process steps and decisions points within a process. Each step is a separate item on the process map.
• Value Stream Map – a special case of a process map that shows the primary flow through a process when every step goes as planned (no rework or branch points). It is the set of steps that create the customer value from the process.

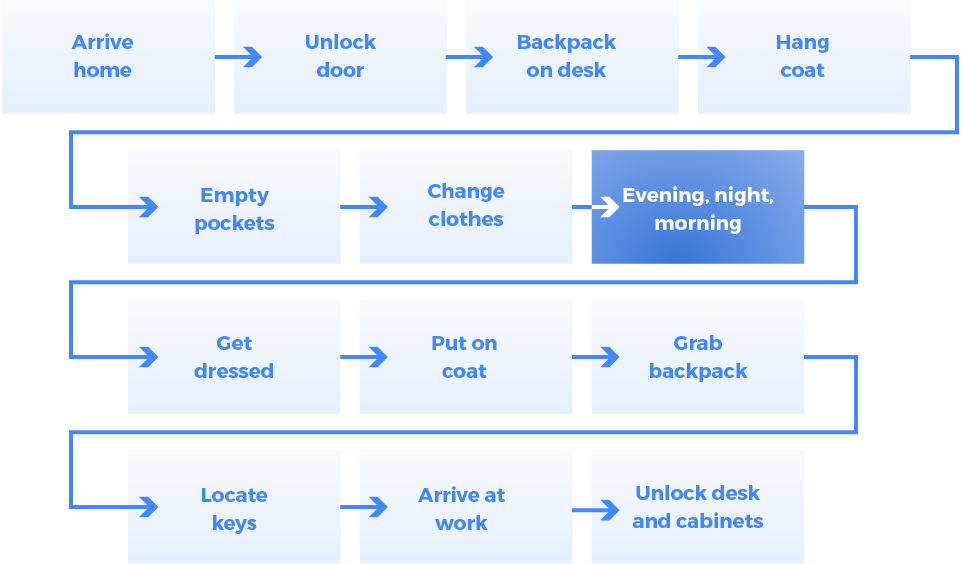

• As-Is Process – this the process map or value stream map that shows all the steps in the process as it is actually occurring in the current business environment. This is not necessarily the same as what is documented in the procedures.
• To-Be Process – this is the desired process map or value stream map after the problem solution has been implemented. This is often reflected in revised process documentation that is released as part of the implementation.
• Data Boxes – these are boxes on a process map or value stream map that are associated with each step. The data box is used to record the metrics associated with that step in the process such as cycle time, value-added time, yield, inventory, or resources.
• TAKT Time – this is a time measure associated with the process. It reflects the amount of time allowed for each process step that ensures the process can meet the customer demand.
• Value Added Time – this is the portion of processing time within a step where an element of customer value is being created on a single item flowing through the process. The value-added time is normally a very low percentage of total time within a step, and is zero for many steps.
• Roll Throughput Yield – this is a calculation of the likelihood that an item will pass through every step in the process being correctly processed on the first pass through that step. It is calculated by multiplying all the step yield values from a value stream map.
• Work-cells – this is a process structure that is often used to speed up flow through the process. All process steps are arranged together in a work cell which reduces time wasted in handoffs between steps.
• Kanban – this is a visual scheduling approach used in process management where a step provides a signal to the preceding step showing that it is ready for the next item. This approach minimizes inventory and ensures each step is working on the item that is currently most important for that step to process.
• Visual Control – this is a set of signaling approaches that allows operators to see where process bottlenecks are occurring and to assist in the actions to relieve those bottlenecks. This allows for real-time process management.

Visual analysis tools and techniques

Visual analysis tools and techniques are used with virtually every problem-solving methodology. These techniques can be used in multiple phases. Their value is that they are quick and easy to understand. They are also excellent communication techniques with senior management and the operations or organizations that will be affected by the solution.

• Histogram – this is a vertical bar chart that shows the relative size of different categories of instances or occurrences. It is used to identify what attributes are the largest contributors to a problem.
• Pareto Chart – this is special version of the histogram. It is organized so that the largest category is first, the second largest is next, and continues on to the smallest category. If provides focus for improvement.

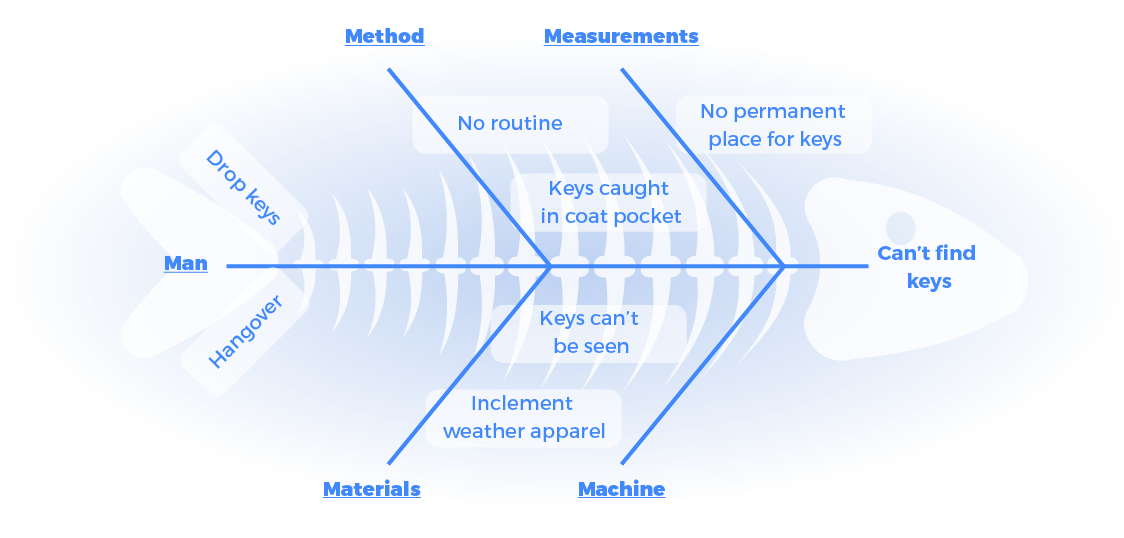

• Fishbone (Cause and Effect or Ishikawa) Diagram – this is a graphical depiction of all the possible causes of the problem, organized into logical categories. This becomes a roadmap for investigation to determine which of the causes contributes to the problem.

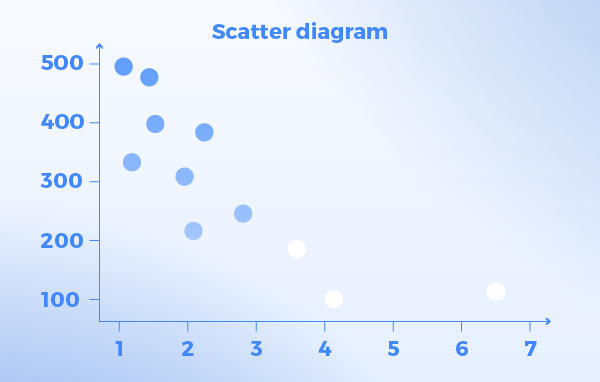

• Scatter Diagram – this is a plot of two attributes associated with each data point. One attribute is shown on the vertical axis and one on the horizontal axis. The plot will reveal whether there is correlation between the two attributes.
• Box Plots – this diagram shows the spread of data for a parameter and the nature of any central tendency. The center half of the data points are shown in a box with a line at the value of the midpoint in the box. The outer half of the data is split into the upper and lower portions and shows the extremes and overall data spread.
• Run Chart – this is a diagram of the sequential values for a parameter as a process is operating. The values are either each successive product or result or they are values collected at set times during process operation.
• Pie Chart – this is a diagram that shows the relative size of categories of a parameter. They are shown as slices of a "pie" representing their percentage. It is often used for "before" and "after" comparisons.
• Check Sheets – this is a diagram showing what is to be measured on a product, process or service. It will often include the measurement technique.
• Quality Function Deployment (QFD) – this technique is a diagram of how the prioritized customer needs are deployed across product and process parameters. It is often used to set performance goals and identified both missed opportunities and wasted activity.
• Solution Selection Matrix – this tool is a matrix that compares solution options across several criteria. When done using plus and minus symbols, it becomes a Pugh Concept Generation Matrix. The other option is to assign scores to each option and weights to the criteria. The matrix can then be used to evaluate the options to select the one with the highest score.
• Bottlenecks – these are areas in a process map with tangled flow or steps where inventory accumulates. Bottlenecks are collectors of waste. There is waste associated with slow moving inventory and waste associated with the extra management needed to accommodate the bottleneck.
• Poka Yoke – this is a set of disciplines that embody the principle of error-proofing. Through the design of the product or process, checks are embedded to prevent mistakes from being made or to make them immediately obvious so they can be fixed.
• Five "S" Disciplines – these are a set of workplace organization disciplines that are visual in nature and provide an indication of whether the workplace is operating smoothly. Deploying the Five "S" Disciplines improves quality and employee safety and morale.

Statistical analysis tools and techniques

The statistical analysis tools and techniques are often associated with the Six Sigma portion of the analysis. The statistical tools help us to make sense of the data and to determine what is significant and what is not. The use of statistical software such as Excel Analysis Tool Pak or the Minitab application has minimized the amount of mathematical computation that the team members must do. However, they still need to understand which statistical techniques to use in each situation and how to interpret the results.

• Process Capability – this is a statistical ratio that compares the normal process variability with the customer or specification limits. It is expressed with process capability indices of Cp, Pp, Cpk, Ppk, or process sigma. The process capability ratio is an excellent predictor of whether the process will be able to deliver defect-free results.
• Descriptive Statistics – these are statistics that describe the normal behavior of a measured parameter within a process or product. It includes the mean, median, mode, and standard deviation.
• Inferential Statistics – these are statistics used to relate the statistical performance of a sample to the statistical performance of the larger data population that the sample represents. These statistics are based upon the sampling approach used and include confidence interval and confidence level.
• Measurement System Analysis – this is a comprehensive analysis of an inspection or test systems ability to correctly determine a measured value within a process or product. It includes an assessment of accuracy, precision, stability, linearity, and discrimination.
• Gage R&R – this is a subset of a typical measurement systems analysis that focuses on the precision of the measurement system. It is a set of experiments using products or processes with predetermined known values and measuring them to determine whether the measurements system will consistently assign the same values.
• Hypothesis Tests – These are statistical tests of a data set to determine whether an assumption about the data can be verified or not. Typically, it is used within Lean Six Sigma to determine if data samples are similar or if there is a statistical difference. If data sets can be shown to be dissimilar, that is an indication that the factor which separates the two data sets has a significant impact on process or product performance. There are many different statistical techniques used depending upon whether the data is normal or non-normal, continuous or discrete, and the number of data sets or parameters being evaluated.
• Correlation – this is a hypothesis test that is used to show whether two continuous data parameters are related, and how they are related.
• Regression Tests – this is a hypothesis test that determines the mathematical relationship between two or more continuous data parameters.

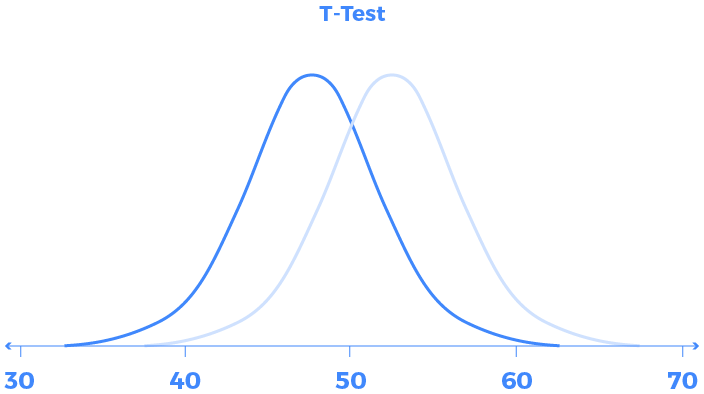

• T Tests – this family of hypothesis tests is used to compare the descriptive statistics of two data samples to determine if they are similar.
• ANOVA – this technique is used to compare the descriptive statistics of two or more data samples to determine if they are similar.
• Tests of Proportions – this family of hypothesis tests is used to determine if two samples of discrete data are similar.
• Chi-Square Test – this technique is used to determine if two or more samples of discrete data are similar.
• Design of Experiments – this is a statistical technique for creating a set of tests with test specimens that are designed to include or exclude certain features and with attributes set at the minimum or maximum level. Based upon the set of experiments, a best case design can be created with the appropriate design features and design targets. This technique is often used when creating a new product or process during the Improve phase.
• Control Charts – these are charts that track the performance of selected process or product parameters and determines whether the variation that is displayed is due to common causes or special causes. There are many different control chart designs, based upon the characteristics of the data and the attribute being measured. These charts are normally used in the Control phase as means of ensuring the improved process performance is sustained.

Project and team management tools and techniques

Lean Six Sigma projects must also be able to interact with stakeholders and customers. There are several techniques that have proven effective in this regard. Some of these are based upon understanding the perspective of external stakeholders and some of these are useful for organizing and communicating with internal stakeholders, such as team members.

• Critical to Quality (CTQ) – these are the process, product, or service parameters that are the attributes of customer value. They are determined by the stakeholders, not the project team.
• Project Charter – this is a project management document used to authorize the project and provide boundaries on the scope of the activity. The format varies from organization to organization.
• In-frame/Out-of-frame – this technique is used to clarify boundaries for a project team. The scope of the project is described in the frame. Areas that are not to be included in the analysis are listed as out-of-frame.
• SIPOC – This stands for Supplier, Input, Process, Output, Customer. It is a technique used to define the limits of the process that is being analyzed and to clarify the stakeholders for the process.
• Cross-functional team – this refers to the makeup of the Lean Six Sigma team. Normally there is at least one representative from each function who has responsibility for performing activities within the process being studied.
• Team decision-making – this is a set of practices used by teams to reach consensus when making decisions. Although many of the team conclusions are determined by the results of the data analysis, there are still decisions to be made in team operation, solution development, and implementation planning.
• Stakeholder management – this is a set of practices that are used to identify the key stakeholders for the Lean Six Sigma project. The key performance goals and communication pattern are also established for each stakeholder.
• Culture change management – this is a set of communication and implementation practices that focus on building buy-in and support for changing processes and work practices. This is often needed during the Improve and Control phases to ensure the solution is viable and sustainable.
• Implementation planning – the implementation of the solution is often a project as big or bigger than the Lean Six Sigma analysis project. This is a set of project management practices used to plan and execute a project.

How does Lean Six Sigma work?

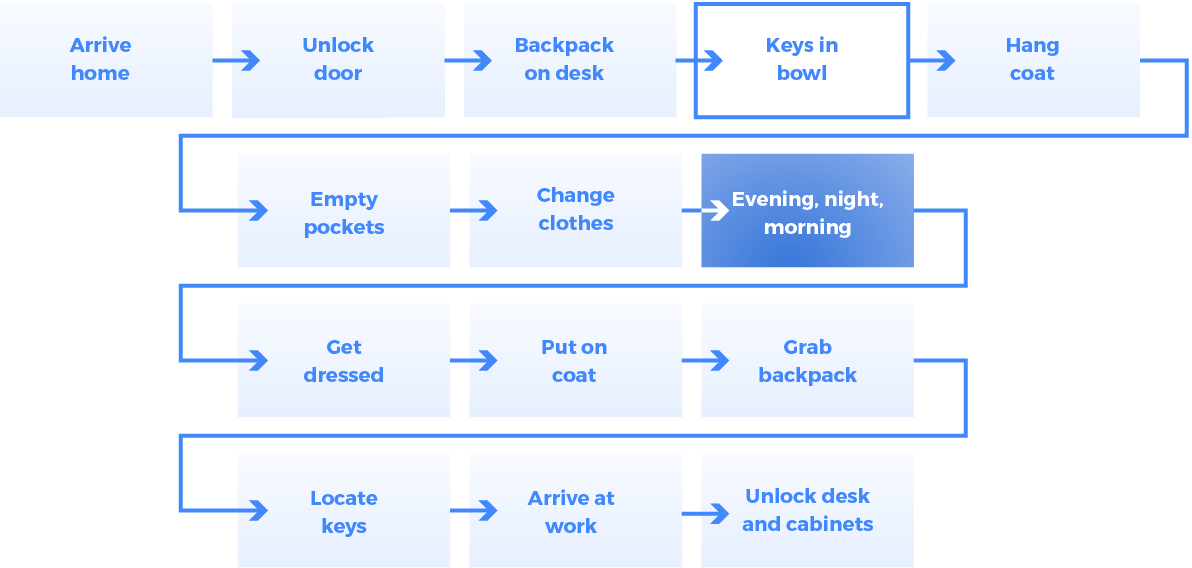

In order to illustrate how Lean Six Sigma works, I will use the methodology to solve a hypothetical problem. Let me set the stage:

Some mornings when you prepare to leave home for work, you can’t find your keys. Searching causes delays and you miss your train or bus. Even worse, sometimes you take your spouse’s keys and then you can’t unlock the office when you arrive. Now you need to wait for someone else to arrive to open the office. Not to mention, your spouse has the same problem when they get to work. The problem has occurred multiple times and your boss has remarked about it. Something must be done to ensure it does not happen again.

Let’s apply Lean Six Sigma methodology and see where it leads us.

Define phase

Let’s start by considering this from the customer perspective. You and your spouse are the primary customers of this process. Your goal is twofold: a) leave for work on time, and b) have the correct keys with you when you leave for work. This leads to one primary CTQ, the keys are in a known location and you can grab them and take them with you when you leave home in the morning. Based upon the In-Frame/Out-of-Frame, you decide to limit the process to what is done with keys the night before and in the morning. You will not include everything else you do to get ready for work in the morning such as breakfast, showering, and getting dressed – except to the extent that they impact the keys. The goal for the project Charter is to create and implement a process that results in the immediate acquisition of the correct keys in the morning when leaving for work.

Measure phase

In this phase you create a process map that shows all the possibilities for what happens to the keys at night. The process starts with arrival at home and ends with arrival at the office the next morning. The process has different branches depending upon whether it was a weekday, weekend or holiday, whether you went out that evening or stayed in, and whether you have inclement weather requiring additional preparation to leave, such as finding an umbrella or a cold-weather coat. In creating the map, you realized that the process on weekends and holidays varied so widely you could not even map it, but the process during the week was relatively stable. This is your As-Is process map.

You applied a time metric to each step and a success or yield metric. Of course, many of the steps, especially those spent searching in the morning, had no value-added time associated with them. In fact, the only value-added steps were the step of placing the keys on your desk when arriving home and picking up your keys in the morning.

Step	Total time	Value-added time	% First time success
Arrive home	23 min	0	100%
Unlock door	1 min	0	95%
Backpack on desk	1 min	0	65%
Hang coat	1 min	0	80%
Empty pockets	2 min	30 sec	70%
Change clothes	4 min	0	85%
Get dressed	6 min	0	75%
Put on coat	1 min	0	100%
Grab backpack	1 min	0	95%
Locate keys	6 min	30 sec	45%
Arrive at work	27 min	0	95%
Unlock desk & cabinets	9 min	1 min	90%

A challenge you faced with the process mapping and measurement was to define a pass or fail condition for each step. In some cases it was obvious, in others you had to think through the purpose of the step to determine the desired outcome. You then collected data for four weeks. To do this you created and used a check sheet every night at bedtime to determine what you had done that evening when arriving home from work and then noted how much time each step required. You also created a check sheet for your activities in the morning, but you normally did not complete that until you arrived at work. Finally, you documented what you did with the keys on each day of the weekend and on the one holiday that fell within that four-week period.

A significant challenge in the data collection was the Hawthorne Effect. This is the name given to the condition where the measurement of a parameter changes what people do. If they know they are being measured, their behavior changes to optimize the measure. By completing the check sheet every night, you were changing your behavior. So you were careful that even if you realized at night that the keys were not in the correct place on your desk, you did not go then to find them, but waited until the morning as would normally occur.

Analyze phase

Now that there is data, the analysis can begin. An obvious problem is that there is no process defined for weekends and holidays. But even during the weekdays you find that your process is unstable. There is minor common cause variation most of the time, but on six of the weekdays there was a major problem finding the keys. You never took your spouse’s keys by accident during the four weeks; but that has only occurred twice in the past six months, so you aren’t able to draw any conclusions about that type of defect.

You create a Fishbone diagram to determine the root causes, and you brainstormed seventeen possible causes for uncertainty in the location of keys in the morning. (Even though you were brainstorming and normally would not reject any ideas, you choose not to include the intervention of space aliens as one of the causes – although it was suggested by your spouse.)

Based upon your analysis, you find that five of the possible root causes could have contributed to the six occurrences of the problem in your data set.

• There is no designated place where keys are to be kept.
• When arriving home with hands full of shopping bags, the keys are often dropped where the packages are unloaded and become mixed with the items from the store.
• When arriving home with an immediate request for attention – such as the phone ringing – the keys are dropped at the location where the attention is needed.
• When arriving home with extra articles of apparel due to inclement weather, the keys may end up in the closet or the pockets of a coat.
• Sometimes, when someone sees keys in an unusual place, they move them to a place they believe to be a better location without telling their spouse the keys were moved.

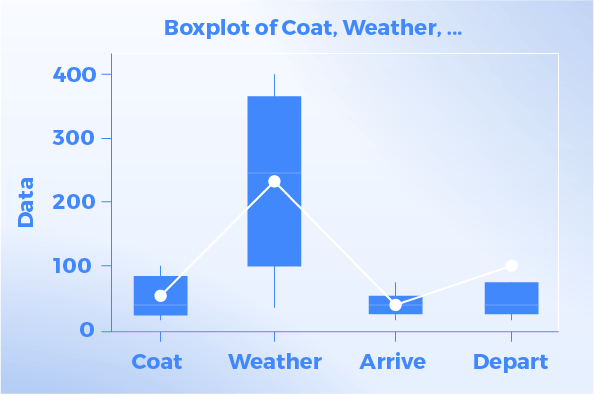

You dig deeper into the analysis of what happens when you arrive at home using the ANOVA. In doing this you find that there is a major difference in what happens to your keys when there has been inclement weather.

It is doubtful that weather causes keys to change location by themselves, so you must do something different when there is bad weather. This points to the need to understand your process for removing and storing your inclement weather apparel. This points to a process problem. You determine that there are two contributing root causes.

• Process: There is no defined process for what to do with keys on the weekend.
• Process: There is no defined process step for storing keys when returning home.
• Root Cause: When arriving home with extra articles of apparel due to inclement weather, the keys may end up in the closet or pockets of a coat.
• Sometimes, when someone sees keys in an unusual place, they move them to a place they believe to be a better location without telling their spouse the keys were moved.

Improve phase

Now it is time to create a solution. First you and your spouse decided on the process changes that need to occur, and created a selection matrix to assess the options. One idea was to place a large hook on the door so that the keys could be hooked there whenever someone returned home. However, that option was not very decorative. A second option was to chain the keys to your belt or purse, but that was rejected because chains didn’t fit your style of dressing. A third option was to connect an RFID tag to the key chain and then install an app on the computer that would tell you location of the keys. While this did not create decorative or fashion concerns, the cost was higher than you were willing to pay. Using the selection matrix, you finally decide to place a small magnetic bowl on your desk that would hold both your keys and your spouse’s keys.

Concept	Low cost	Poka Yoke	Aesthetic	Time	Total
RFID on keys	1	3	4	3	11
Hook on door	5	4	1	5	15
Ceramic bowl on desk	4	4	4	5	17
Chain on belt	3	4	1	5	13
Color key fob	3	5	3	4	15

This bowl fits the desk décor and created a "home" for the keys. Then a process step was added for arriving home. Following removal of inclement weather apparel (if any) the keys were to be immediately placed in the bowl. This same practice was to be adopted for the weekends. Whenever anyone returned home, the first step was to place the keys in the bowl. This was the "To-Be" process.

Because the bowl was prominently placed on the desk, it also served as a Poka Yoke reminder of key status. If either of you were home, the bowl should not be empty. If both of you are home, both sets of keys should be there. This solution addressed all four of the issues that had been found in the Analyze phase. A process was now defined for both weekdays and weekends. This process accounted for inclement weather apparel and it designated a place where misplaced keys should be taken. You determined to add one more thing to further Poka Yoke the solution. You and your spouse have different color fobs attached to your keychains. The two sets of keys are now easily distinguished.

You and your spouse try the new process for a week and find that it is easy to follow on the weekdays, but you still had trouble remembering to put the keys there on the weekend. So, an additional step was added to the process. This step was that every evening when you went through the house to check that the doors and windows were locked, you also checked that the keys were in the bowl. That check was easily added to the "go to bed" process since during that process you always checked the computer on the office desk.

Control phase

In this example, this phase will be easy to complete. You don’t have a large cross-functional organization to change. But it does involve the change in habit patterns for you and your spouse, so the process needs to be monitored to ensure it is followed. You create a control plan.

The keys are checked every night to be certain they are in the bowl. The response plan is that if the keys are not in the bowl, you and your spouse immediately get up to search for the keys and place them in the bowl before retiring to bed. Approximately three weeks after fully implementing the change, you and your spouse returned late one weekend night after attending a gala party. You were exhausted and just wanted to go to bed. However, when doing the "go to bed" process, you recognize that a set of keys is missing from the bowl. Although tempted to ignore the problem for the night, you and your spouse do a quick check and find the keys with the outer garments you wore to the party. Placing them in the bowl, you are now able to go bed with a clear conscience and peace of mind.

The plan was implemented and the misplaced key problem was eliminated. Although the new process had two additional steps, it effectively eliminated the frantic loop of looking for keys in the morning. The overall time was reduced, efficiency was increased, the error rate dropped to a non-existent level, and customer satisfaction was enhanced.

Wrap-up

Here are several important takeaways from our look at Lean Six Sigma.

First, Lean Six Sigma is a structured problem-solving process using data that transforms the "lucky guess" problem-solving approach that is often used in organizations today. The structured process guides the team through the steps they should follow, and the reviews ensure that they are not cutting corners.

Second, Lean Six Sigma contains many tools, but the tools do not rule the team. The Black Belt and Green Belt project leaders select the appropriate tool for the situation. The tools are there to assist the team in their analysis, not constrain them.

Finally, the goal is an improved process, product or service that better meets the customer expectations. Lean Six Sigma is not about the process or the tools, it is about the customer. A project success is declared when waste and variation are eliminated or reduced and customer value is enhanced.

Ready to learn more about Lean Six Sigma and prepare to get certified? Browse our IASSC accredited Lean Six Sigma certification online courses.

View Lean Six Sigma courses
